Dehorning the RR rack

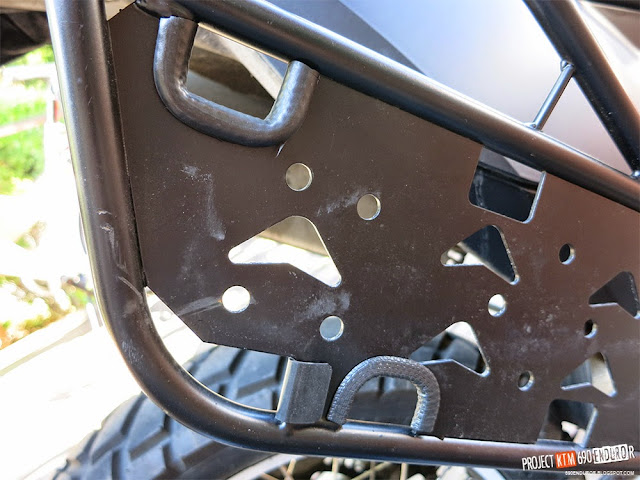

Sharp edge on the RR rack
The RR racks have rectangular cutouts that I want to use to secure my Wolfman bags. There is a problem though, Apparently the edges are sharp enough to eat through the mounting straps in relatively short time due to the vibrations that the big thumper produces.

The way the straps run, (in reality from the upper and lower corners, but you get the point)

I'm keen on keeping my simplified method of strapping the bags to the racks so I needed to come up with a solution that removes this problem.

different edge trim options

I bough different edge trims, two with metal inserts, one flabby rubber one and rubber fuel hose. While the fuel hose is the most ghetto, it just might be the best of the four. The wider trim with metal insert wont bend enough to sit nicely nor will the flabby rubber one. The flabby rubber trim would also need to glued in place, otherwise it just falls off.

Fuel hose top left, flabby rubber bottom left, smaller trim with metal insert bottom center
Plan B

I'm wasn't overly impressed with what I came up with so I needed a plan B. I would like to say my plan B was genius, it's not, but it might do the trick well enough. Looping a double layer of webbing should prevent the actual attachment straps from wearing through and the protective webbing can also be used to hold a rubber trim in place without the need to glue anything. The webbing and rubber should provide enough "edge protection" even for longer rides and the webbing can be detached and used for something in an emergency. The webbing will be attached in place with plastic quick release buckles once I can score some from somewhere that are the right size.

This is the general idea how the webbing is routed

The "final" solution for now. There is a piece of rubber edge trim under the webbing. The buckles will be placed on the inside. They are on the outside for the photo only.
