Saturday, December 27, 2014

Desert race on KTM 690 Enduro

I haven't posted many videos by others, but I think it's time so there is something to watch during the winter months. The video below is from the 44th desert 100 race. I like that it really shows a mere mortal (mistakes and all) participating on a race event and there is no fast editing or annoying music. The race doesn't really end well for the guy, but it was very interesting to watch anyway.

Too many of the 690 videos are just asshats doing wheelies on public roads. I ***ing hate that stuff.

Saturday, December 20, 2014

Decatting the 690 Enduro R stock exhaust [updated 20th Dec.]

-14 690 Enduro R stock exhaust

I got the idea from ADVrider forums where I found a couple of different approaches to the process. There is no real sensible purpose for this project, but out of curiosity I want to see if the decatted exhaust will run noticeably cooler. I'm also interested in how the decatting affects the sound. (I like my exhausts as quiet as possible). The starting point is a -09 SMC exhaust which looks visually identical to the current  -14 version with the exception of it not having the single mounting hole and the missing "crash guard". If all goes well, I will have a slightly lighter and somewhat cooler quiet OEM pipe.

The patient (-09 690 SMC exhaust) sedated for surgery

At this point I'm not at all certain if I can mount the -09 pipe directly to the bike simply by using one of the two mounting holes. I.e. I don't know if the holes will match.

***Disclaimer, I recommend you don't attempt this at home. Neither should you install a decatted exhaust on your bike since it may be illegal and/or damage your bike.

Step one, hacksawing the exhaust in two [Sat Nov. 15th]

(Step one should really be to check if the holes match and the pipe can be mounted using the existing mounting holes etc., but I'll worry about that later)

Sawing complete. Took some time with a plain old manual hacksaw

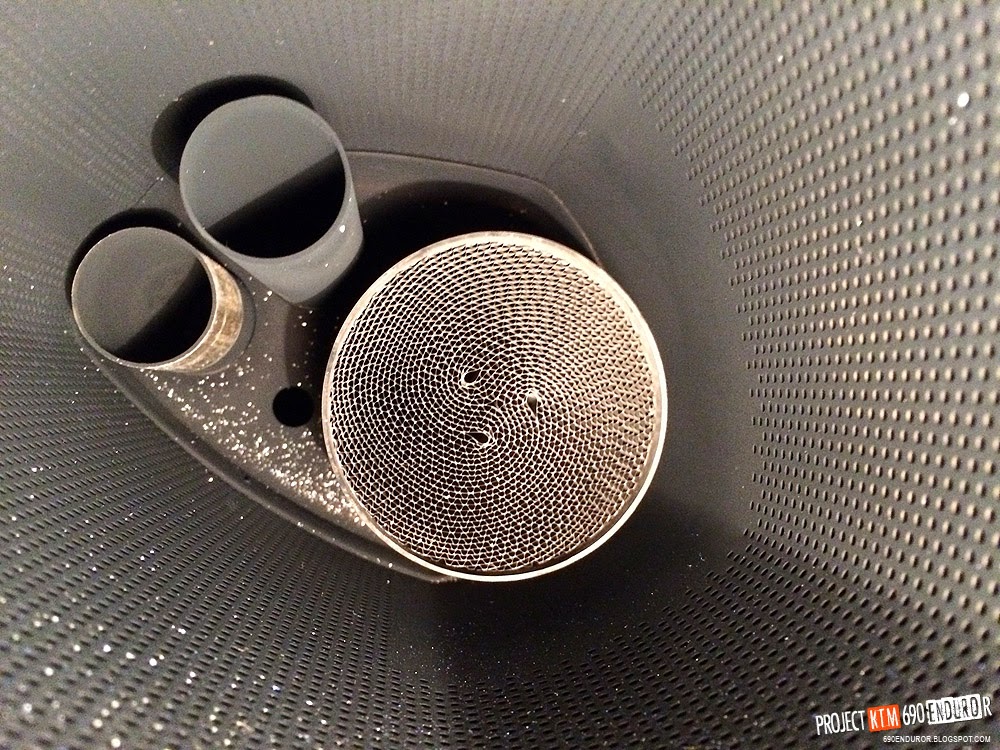

The catalysator is the big round thingy with the "filter"

Step two, removing the cat [Sun Nov. 16th]

cat removed
With the help of a power drill, a long iron rod and a hammer the cat was first drilled and then pounded clean off. Seemed hopeless at first, but the key was to drill it full of big holes first and then chip away what was left.

The weight (the now separated end cap not included) was reduced from 4,315 kilos to 4,137... This means removing the cat resulted in weight savings of 178 grams or 6,3 ounces. Clearly saving weight is a very poor excuse for decatting.

Next step: find a welder... (this can take a while)

Step three, welding it back together

I found a welder through a friend and he did a rather good job in my opinion. Cost me a bottle of gin so the price was very reasonable too.

Next step, mounting it on the bike

For now, I'm assuming the existing mounting holes will not match. I will probably have a chance to test this assumption during the weekend. I'll keep you posted.

UPDATE [30. Nov]
Eyeballing the pipes side by side the holes could match, but the problem was the width of the -14 adapter. Apparently the earlier bikes with two hole mounts had an adapter that was narrower.

The original -14 model pipe still mounted
the -14 mount is too thick to fit on the -09 pipe

Next step, ordering the 08 - 13 exhaust mount.

 I need parts 13,14,15, and 17. Let's see how much that will set me back.

Mount sourced

The mount set me back 55€. Ouch.

UPDATE [20. Dec.]

Mounting and testing

Today was finally time to mount and test the modified pipe. I was armed with a temperature "gun" and an iphone decibel measuring app. After running the bike with the original pipe for a while it became clear that the temparture measuring would not work under these conditions. The outside temp was 2 Celsius degrees (35 F) and the pipe would only warm up up to 14 degrees after 6 minutes. I wasn't going to stand out in the cold and wait for both the pipes to heat up properly.

The noise levels were pretty similar which was good. My unscientific measuring method, showed an increase of 2 to 3 decibels at 5000 rpm. At lower rpms the difference was maybe 1 decibel. Again very unreliable data and very unscientific method, but watching the videos will probably give you a better idea.

The mounting itself did not go according to plan. For some reason the mounting holes on the pipe would not match up. The pipe was seated properly, maybe even a millimeter or two deeper than the OEM -14 pipe, but there was still a half a bolts width to go. There was no hope of getting the bolts in place. No big deal for now, but I will have to figure out a solution later.

I just can't understand what is causing the mismatch though.

modified exhaust mounted, sort of...

nothing is happening


the modified pipe was seated well

no differences in lengths as far as I can see

Thursday, December 18, 2014

2014 Enduro R fuel breather hose and ABS wiring recall

The problem area / hose in my bike

KTM USA has sent out a technical bulletin stating the following

 During routine production checks, KTM discovered that the fuel tank vent hose could be
routed incorrectly on some 2014 690 Enduro R models. This could cause the hose to
become pinched by the seat and not vent properly as intended.

» The original 900mm length hose is too short for the new routing, therefore a new 1000mm
length hose must be installed connecting the Fuel Cap flange to the EVAP Canister. The
actual hose and routing need to be changed on all affected models linked to this bulletin.

» Additionally the ABS Power Cable, which connects to the battery + terminal, may not have
a red color wrapping to indicate that it is the power supply cable.

» KTM is requesting all affected retail unit customers be contacted to have this repair
performed as soon as possible. This repair can also be performed at the next service
interval or workshop appointment.

The breather hose was an issue on my bike and the recall should therefor apply to euro bikes too. The ABS cable issue is a non issue in my opinion, but I guess it is liability thing if they don't fix it. Neither of the problems require immediate action, just pay attention when putting the seat back on.

2014 clip compilation

The flu still has me beat, but I put together a collection of clips from last year.

Wednesday, December 17, 2014

The Rolling Hobo

You rarely find sites as good as Hobo's is and it's 99% 690 Enduro related. The Rolling Hobo is a Finnish guy who apparently is great at stylish website design, taking photos and doing travel reports. I've been coming back to his site more and more lately and I've realized that he is about a year or two ahead of me in doing stuff I'm just only recently getting ideas about.

Recommended reading at

Thursday, December 4, 2014

2016 KTM 690 Enduro R?

This spyshot appeared recently at From what I can see there are a few changes compared to the current model.

  • There now seems to be a tubular rear frame
  • The exhaust is on the right side
  • the exhaust now runs under the bike (don't like that)
  • the fuel tank location is a bit of mystery, but it certainly is not the same as before
  • engine is now a part of the frame
If it's going to be significantly lighter, that's one thing, but from what I can see from the pic there isn't a whole lot that would justify trading the current one for the -16 model.
